K4V110-06 K4V120-06 K4V130C-06 K4V130E-06 K4V130P-06 二位三通電磁閥

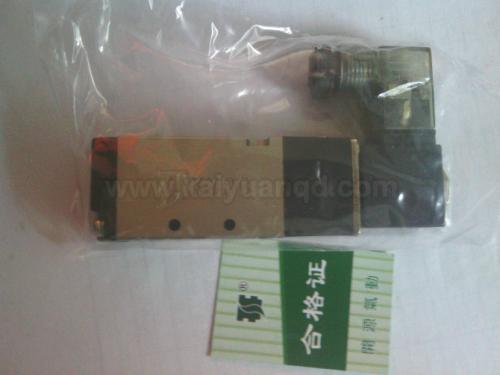

更多K4V110-06 K4V120-06 K4V130C-06 K4V130E-06 K4V130P-06圖片展示:
K4V110-06 K4V120-06 K4V130C-06 K4V130E-06 K4V130P-06 詳細介紹
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
| Position and way NO. | 5/2 way | 5/3Five-way | 5/2 way | 5/3 way | ||||||
| Effective area | 14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(CV=0.67) | ||||||
| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 | ||
| Position and way NO. | 3/2 way | 3/2 way | ||||||||
| Effective area | 14mm2(CV=0.78) | 16mm2(CV=0.89) | ||||||||
| Port size | Air inlet=Air outlet=Exhaust=G1/8″ | Air inlet=Air outlet=G1/4″ Exhaust=G1/8″ | ||||||||
| Fluid | 40 micron fi ltered air | |||||||||
| Operation | Inside pilot type | |||||||||
| Operating pressure | 0.15~0.8MPa | |||||||||
| Max. proof pressure | 1.2MPa | |||||||||
| Temperature | 5~50oC | |||||||||
| Allowable voltage | ±10% of rated voltage | |||||||||
| Power consumption | AAC: 4.5VA DC: 3W | |||||||||
| Coil insulation & protection grade | Class F.IP65 | |||||||||
| Electrical entry | Lead wire or connector | |||||||||
| Highest action frequency | 5 cycle/second | |||||||||
| Shortest excitation time | 0.05 second | |||||||||
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
| Position and way NO. | 5/2 way | 5/3Five-way | 5/2 way | 5/3 way | ||||||
| Effective area | 14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(CV=0.67) | ||||||
| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 | ||
| Position and way NO. | 3/2 way | 3/2 way | ||||||||
| Effective area | 14mm2(CV=0.78) | 16mm2(CV=0.89) | ||||||||
| Port size | Air inlet=Air outlet=Exhaust=G1/8″ | Air inlet=Air outlet=G1/4″ Exhaust=G1/8″ | ||||||||
| Fluid | 40 micron fi ltered air | |||||||||
| Operation | Inside pilot type | |||||||||
| Operating pressure | 0.15~0.8MPa | |||||||||
| Max. proof pressure | 1.2MPa | |||||||||
| Temperature | 5~50oC | |||||||||
| Allowable voltage | ±10% of rated voltage | |||||||||
| Power consumption | AAC: 4.5VA DC: 3W | |||||||||
| Coil insulation & protection grade | Class F.IP65 | |||||||||
| Electrical entry | Lead wire or connector | |||||||||
| Highest action frequency | 5 cycle/second | |||||||||
| Shortest excitation time | 0.05 second | |||||||||
